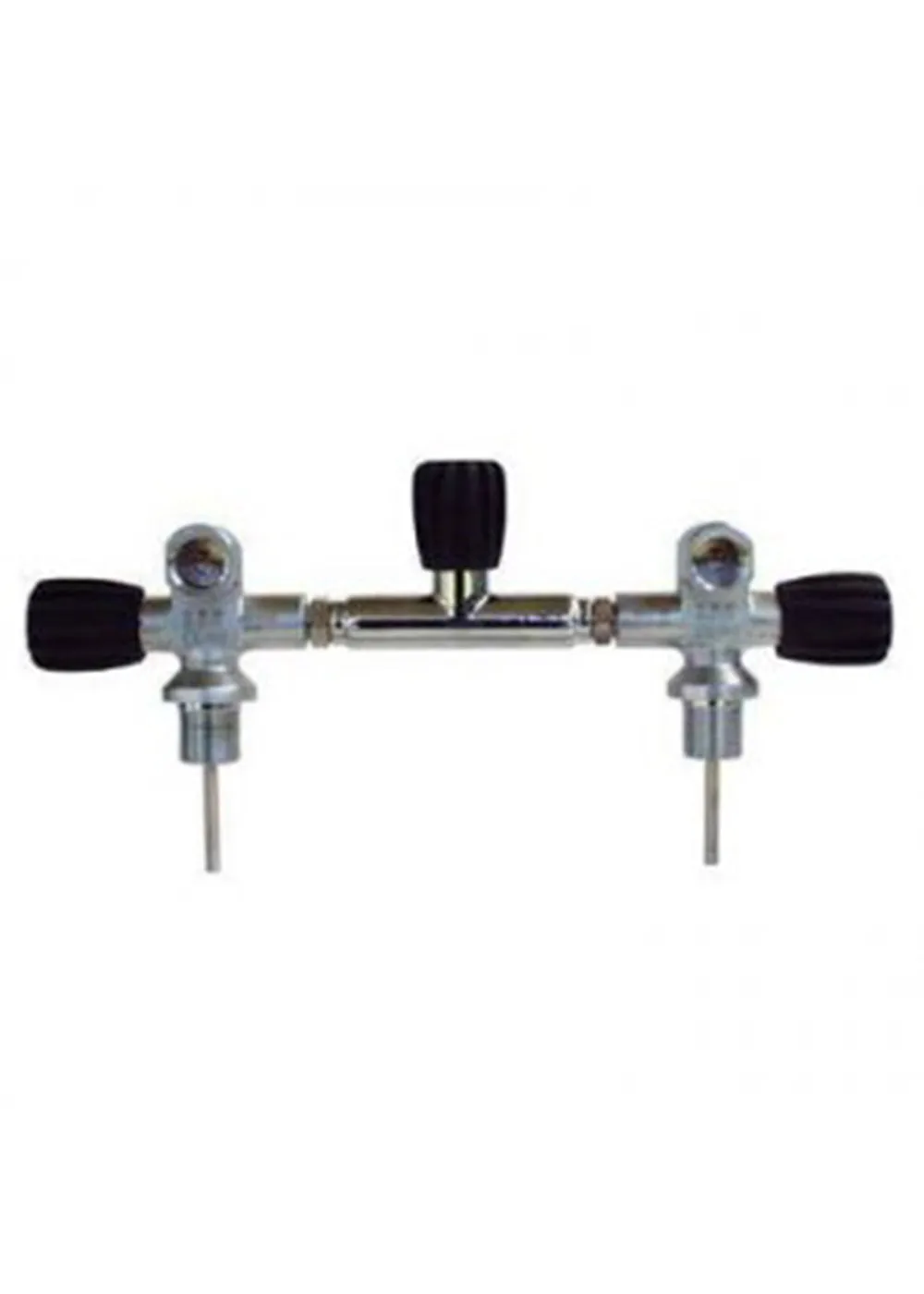

The Isolation Manifold 192mm Centre DIN/K (Suit 9, 10 and 12L Std Tanks) is designed and manufactured in Italy for long life and heavy use and it consists of left and right San-o-Sub 232 bar DIN/K modular valves, with your choice of three different width manifold isolation crossbars with 192 mm (7.6 inch) adjustable centre-to-centre spacing.
**PLEASE NOTE** We can't ship this item assembled as the risk of damage caused from mishandling by our shipping partners is too high, given that even minor damage can have catastrophic outcomes, sending this unassembled is in the best interest of all parties considered.
You are ready to get a set of doubles and need a durable, high flow, convertible, isolation manifold. The San-o-Sub Dual Outlet 232 Bar Manifold with Isolation crossbar is the one you need. San-o-Sub has always been known to make one of the most durable, high flow valves systems on the market and they have proven to do it again with this Isolation Manifold.
The valve has the shorter 200 bar, female DIN connection with 5 threads to connect your first stage DIN scuba regulator. The valve regulator connection comes complete with a threaded DIN to Yoke insert, which means it can equally be used for both INT bracket (Yoke) or DIN regulator connections. Use an 8 mm Allen key to take the insert out or put it in.
The valve has a standard 3/4"x14 NPSM (NGS) parallel thread to fit the cylinder neck thread of most Australian Standard aluminium and steel tanks/cylinders/bottles. It has a 60° thread form, a pitch diameter of 0.9820 to 0.9873 in (24.94 to 25.08 mm), and a pitch of 14 threads per inch (5.5 threads per cm).
Ensure that you are fitting the valve to a cylinder with a matching thread. Getting it wrong is extremely dangerous.
The valves include a nearly indestructible handwheel formed around a stainless steel insert. The stainless steel insert ensures a positive operation with a long-lasting life. The large ribs make it easy to open or close the valve even while wearing gloves.
The manifold isolation cross bars incorporate triple O-ring seal toroidal connections known for their robust reliability, and are available in three different width adjustable centre-to-centre spacings:
- 192 mm (7.6 inch) centre to suit 9, 10.5 and 12.2 standard litre, 178 mm (7 inch) diameter, cylinders
The manifold is Nitrox ready up to 40% oxygen, bagged from the factory with EPDM O-rings for immediate use with enriched air equipment.
Precision machined from high-quality marine brass, the manifold will give years of service and corrosion-free operation.
These are the manifolds supplied standard with Faber steel 232 bar twin-cylinder setups in Australia.
Isolation Manifold 192mm Centre DIN/K (Suit 9, 10 and 12L Std Tanks) Features:
- DIN/K valves for DIN or Yoke regulators
- Left and Right modular 232 bar DIN/K valves
- Constructed from marine grade chrome plated brass for long life protection in saltwater
- Standard 3/4"-14 NPSM standard cylinder inlet threads
- Nitrox clean to 40% from factory, plastic bagged and EPDM O-rings.
- Engineered with high flow characteristics to maximise regulator performance.
- Easy Grip Hand Wheels
- Triple O-ring seal toroidal connections
